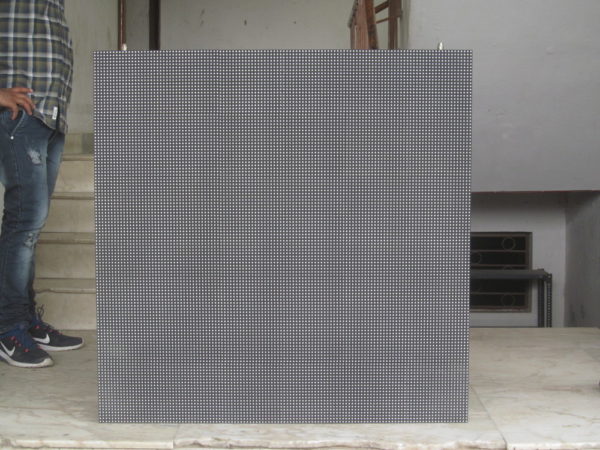

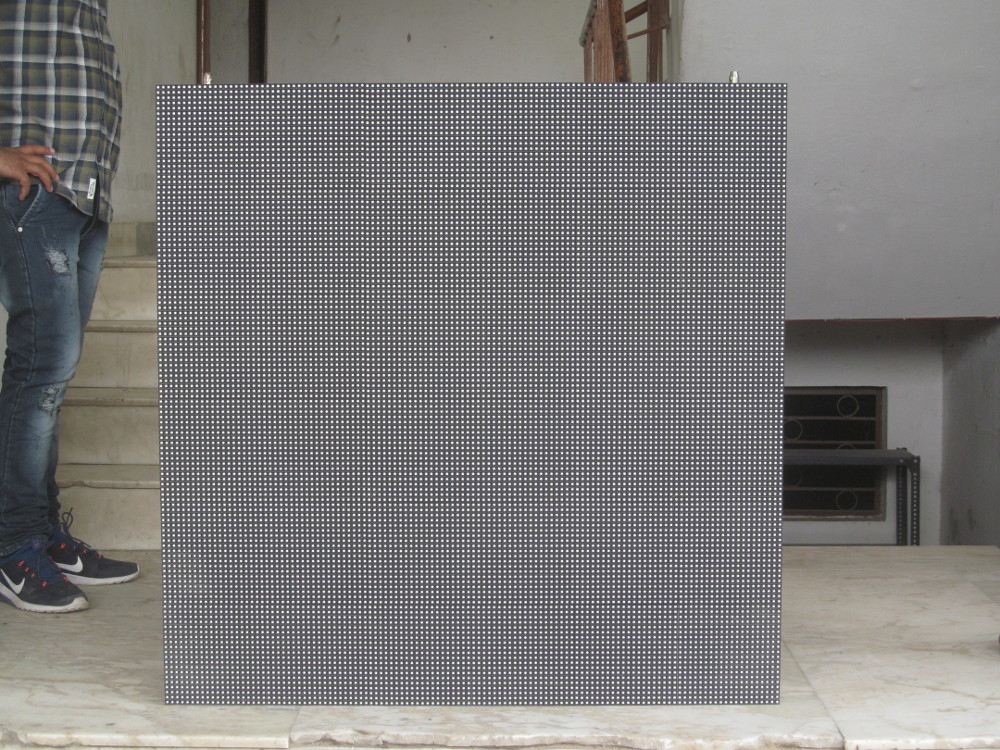

Outdoor Led Display
P8 ( 960mm x 960mm )
| Pixel Pitch (in mm) | 8 |
| Pixel Density (Dots/cabinet) | 14400 |
| Module Size (mm*mm) | 320*160 |
| Module Resolution (pixels) | 40*20 |
| Pixel Identification | SMD3535 |
| Driving IC | SM16016SC |
| Scan Mode | 5 |
| Brightness (cd/m2 | 6000-7000 |
| Refresh Rate (Hz) | ≥1320 |
| Power Supply | 5V-60A |
| Power Consumption (Watt) | 800 |
| Cabinet Resolution | 120*120 |
| Cabinet Average Power Consumption (Unit/hr) | 0.8 |
| Cabinet Size (mm*mm) | 960*960 |
| Cabinet Weight (Kg) | 34.48 |

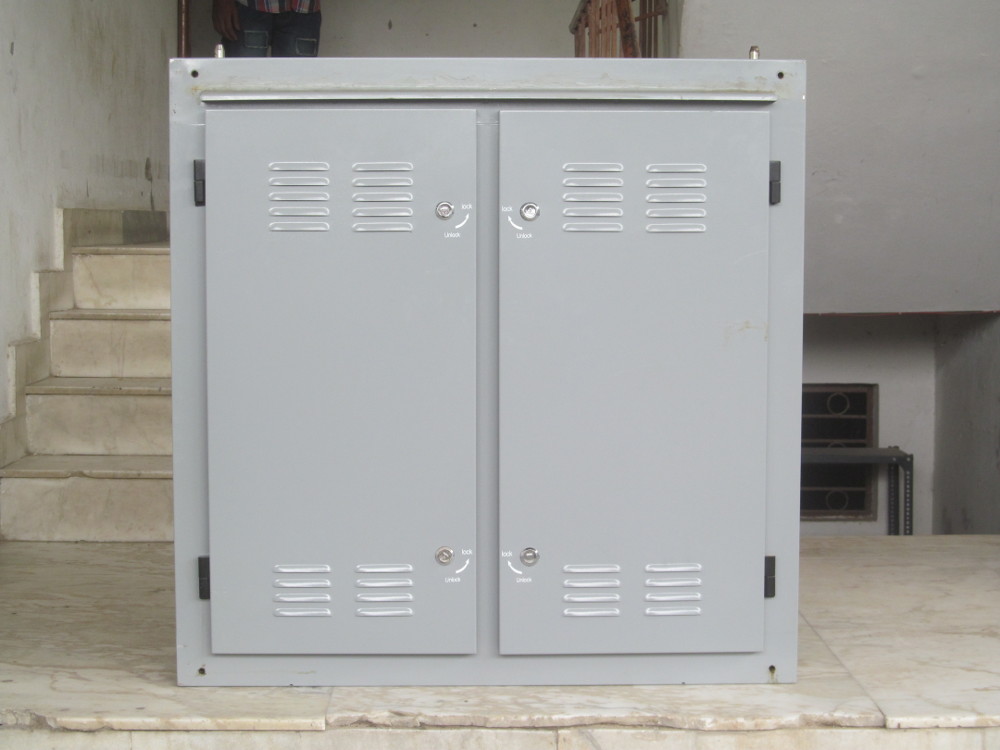

| Cabinet Material | Mild Steel |
