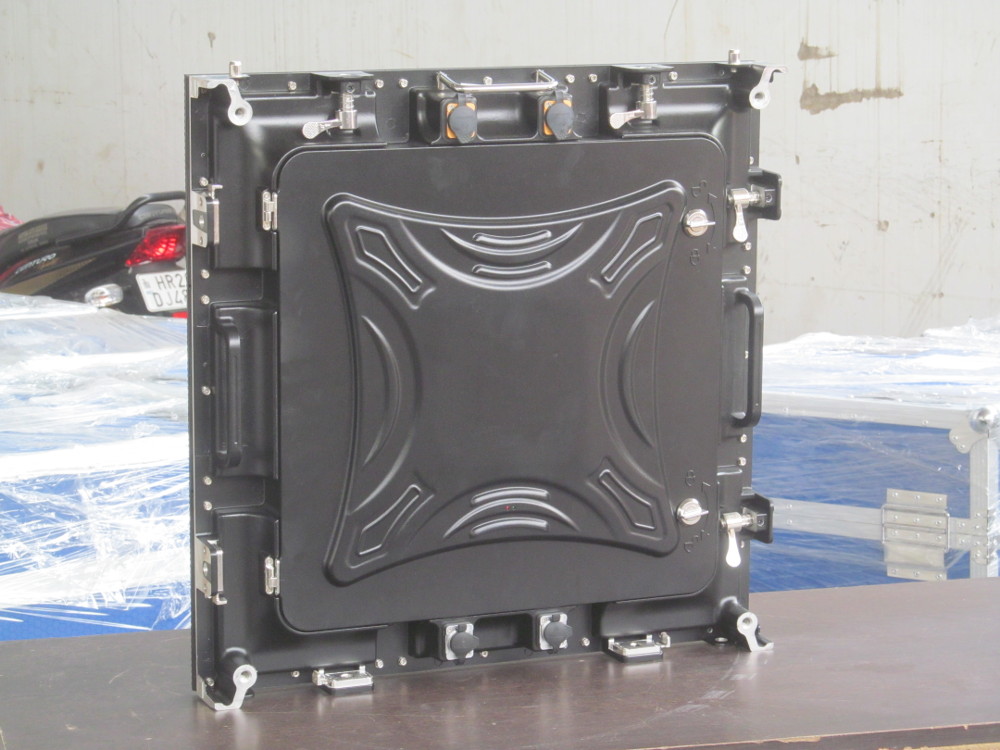

P6 ( 576mm x 576mm )
P6 ( 576mm x 576mm )
| Pixel Pitch (in mm) | 6 |
| Pixel Density (Dots/cabinet) | 9216 |
| Module Size (mm*mm) | 192*192 |
| Module Resolution (pixels) | 32*32 |
| Pixel Identification | SMD3535 |
| Driving IC | SM16027S |
| Scan Mode | 8 |
| Brightness (cd/m2 | 5000-6000 |
| Refresh Rate (Hz) | ≥2160 |
| Power Supply | 5V-60A |
| Power Consumption (Watt) | 300 |
| Cabinet Resolution | 96*96 |
| Cabinet Average Power Consumption (Unit/hr) | 0.3 |
| Cabinet Size (mm*mm) | 576*576 |
| Cabinet Weight (Kg) | 10.50 |
| Cabinet Material | Die Cast |
