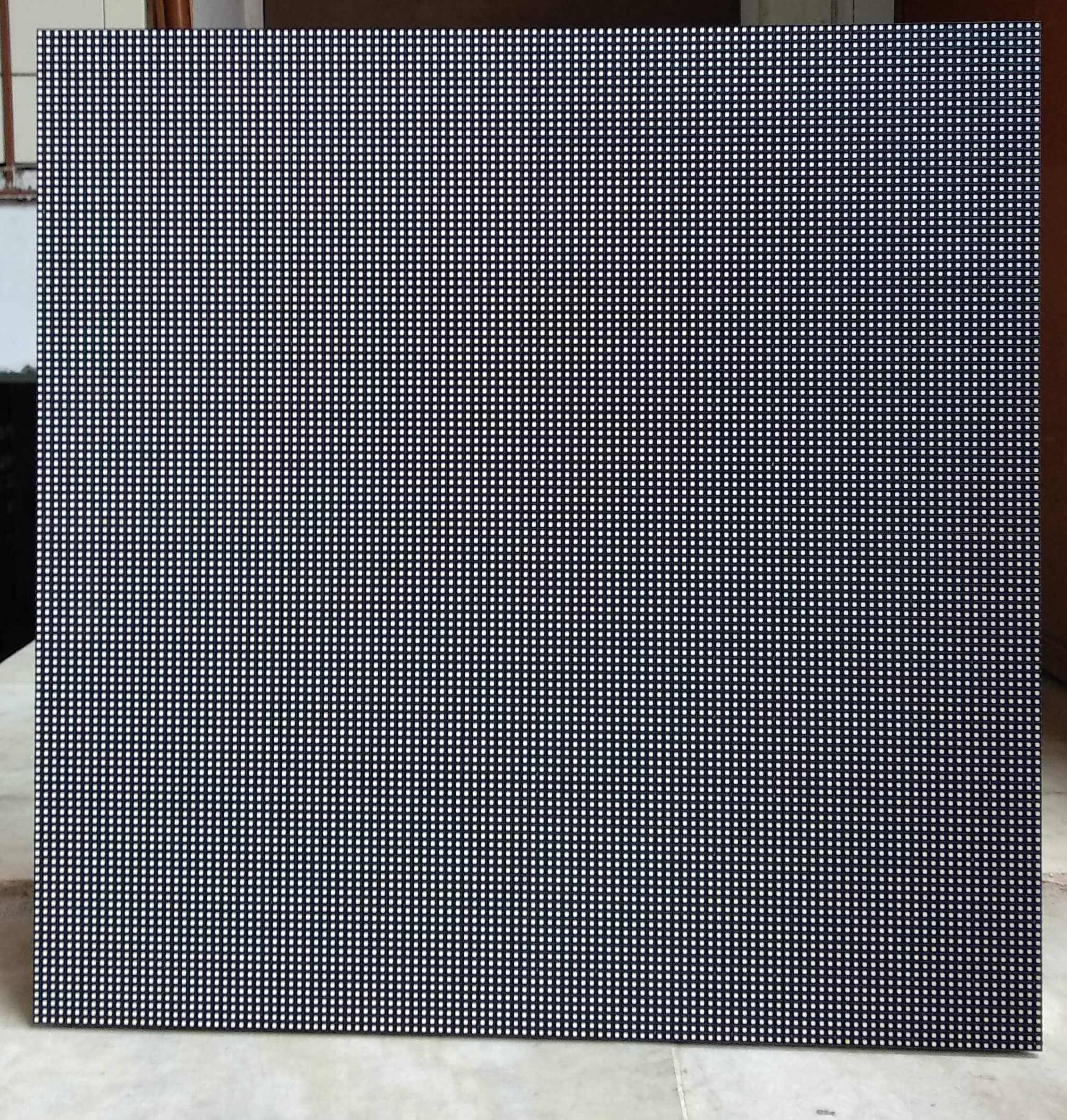

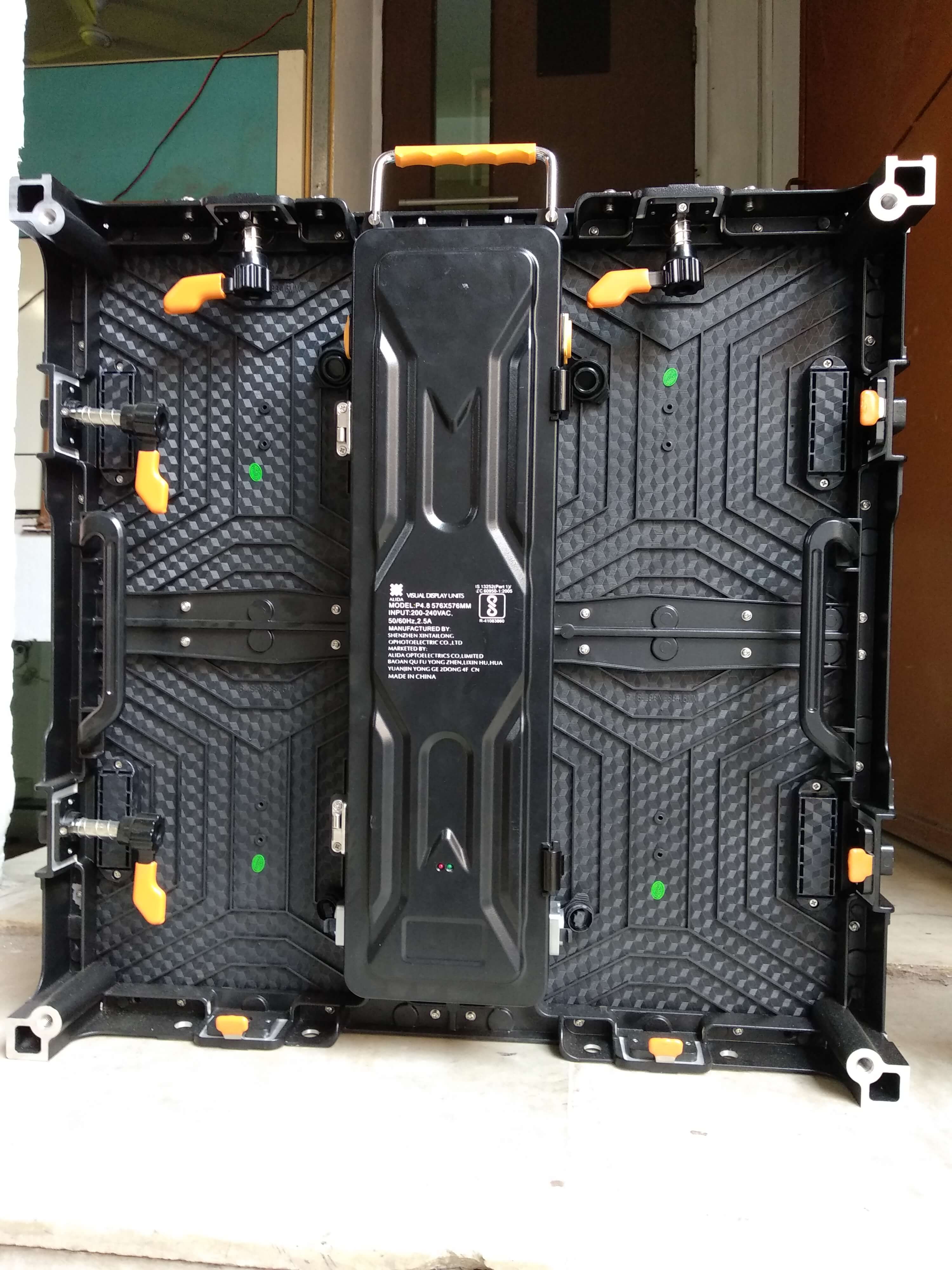

P4.8 ( 576mm x 576mm )
P4.8 ( 576mm x 576mm )
| Pixel Pitch (in mm) | 4.8 |
| Pixel Density (Dots/cabinet) | 14400 |
| Module Size (mm*mm) | 288*288 |
| Module Resolution (pixels) | 60*60 |
| Pixel Identification | SMD2727 |
| Driving IC | ICN5153 |
| Scan Mode | 10 |
| Brightness (cd/m2 | 5000-6000 |
| Refresh Rate (Hz) | ≥3840 |
| Power Supply | 5V-60A |
| Power Consumption (Watt) | 240 |
| Cabinet Resolution | 120*120 |
| Cabinet Average Power Consumption (Unit/hr) | 0.3 |
| Cabinet Size (mm*mm) | 576*576 |
| Cabinet Weight (Kg) | 10.38 |
| Cabinet Material | Die Cast |
