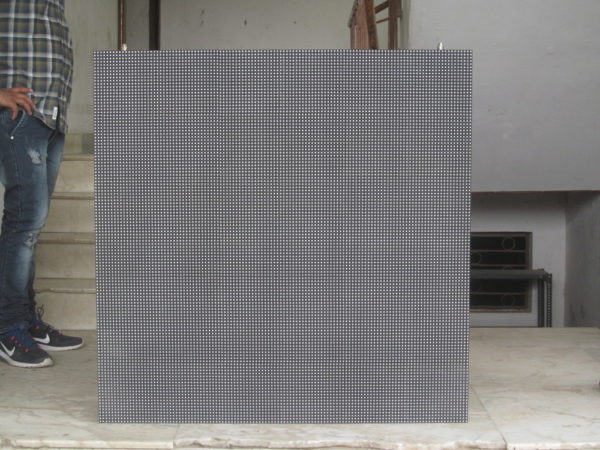

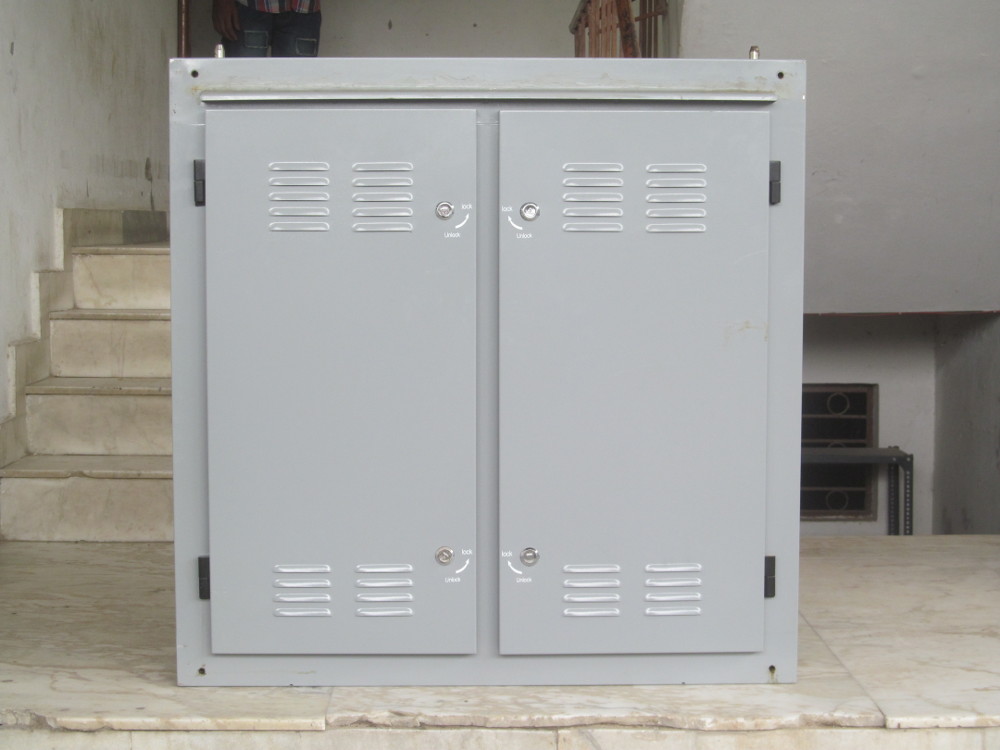

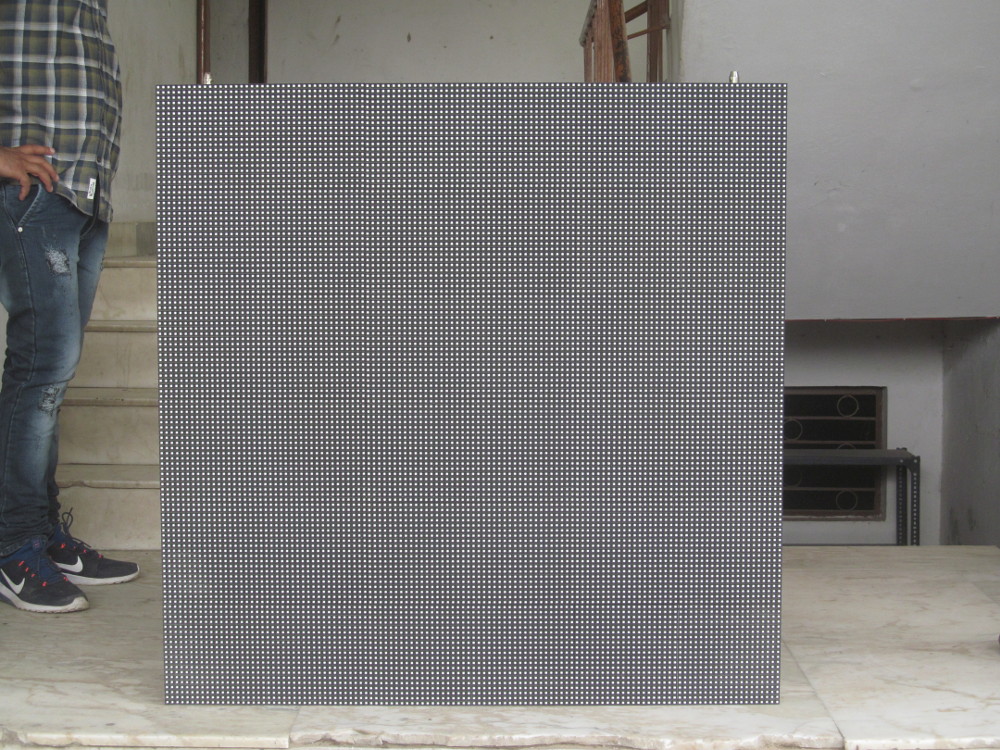

P6.67 ( 960mm x 960mm )
P6.67 ( 960mm x 960mm )
| Pixel Pitch (in mm) | 6.67 |
| Pixel Density (Dots/cabinet) | 20736 |
| Module Size (mm*mm) | 320*160 |
| Module Resolution (pixels) | 48*24 |
| Pixel Identification | SMD3535 |
| Driving IC | SM16016SC |
| Scan Mode | 6 |
| Brightness (cd/m2 | 6000-7000 |
| Refresh Rate (Hz) | ≥800 |
| Power Supply | 5V-60A |
| Power Consumption (Watt) | 1002 |
| Cabinet Resolution | 144*144 |
| Cabinet Average Power Consumption (Unit/hr) | 1.001 |
| Cabinet Size (mm*mm) | 960*960 |
| Cabinet Weight (Kg) | 34.96 |
| Cabinet Material | Mild Steel |
