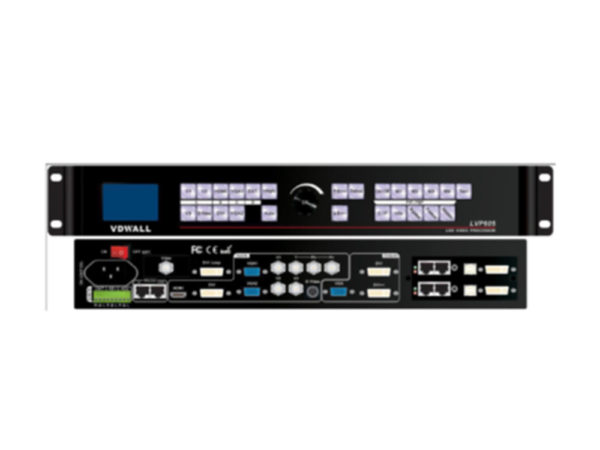

LVP605 Series

Show all
LVP605

LVP605 Series

  1.  10+ Bit Faroudja® DCDI Cinema Processing
  2.  New Faroudja® Real Color®
  3.  Faroudja® TureLife™ Video Enhancer
  4.  Advanced 4×4 Pixels Interpolation Scaling Algorithm
  5.  HDMI 1.3a with HDCP, HD 1080P input
  6.  SDI / HD-SDI / 3G-SDI (1080P) Input
  7.  10-bit Processing
  8.  Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals
  9.  HD Text, Flash, Graphics & Logo Overlay
  10. 4 custom PIP / POP display modes, which can be switched by pressing one button
  11. Hot Spare function, display will be stable and reliable
  12. Picture Freeze function
  13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
  14. 2304 x 1152 or 2560 x 816 output for single machine
  15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice
  16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command

for operating and setting

  1. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:

3×CVBS        1×DVI                             1×HDMI

2×VGA          1×YPbPr / YCbCr           1×S-Video

1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI / 3G-SDI or VGA / DVI / HDMI )

  1. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,

there are 5-channel audio for synchronous switch

  1. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
  2. 24 / 7 Application



LVP605 series product model description

*LVP605： Extend interface optional 1×Video

*LVP605S：Extend interface optional 1×SDI/HD-SDI/3G-SDI

*LVP605D：Extend interface optional 1×VGA/DVI/HDMI
